For long-distance continuous conveyance of bulk granular and powder materials, conventional vibratory equipment often brings heavy dynamic load to plant foundations. Our two-mass resonant vibratory trough conveyor solves this pain point. This resonant conveyor is widely used in metallurgy, chemical, food and powder processing industries. It moves bulk solids steadily along the trough with low energy consumption and low base vibration. It can be manufactured as an open trough or fully sealed trough with covers for dust containment.

The system consists of two mass bodies connected by elastic plate springs:

1. Upper mass: vibratory trough, liner plate and conveyed material
2. Lower mass: base frame and vibratory motor / exciter unit

The equipment runs near its natural resonant frequency. The two mass→ two masses vibrate in opposite directions. Most inertial forces cancel each other internally. Only minimal vibration is transmitted to the ground foundation.

That is why we can obtain stable amplitude with relatively low motor power, even for long trough designs.

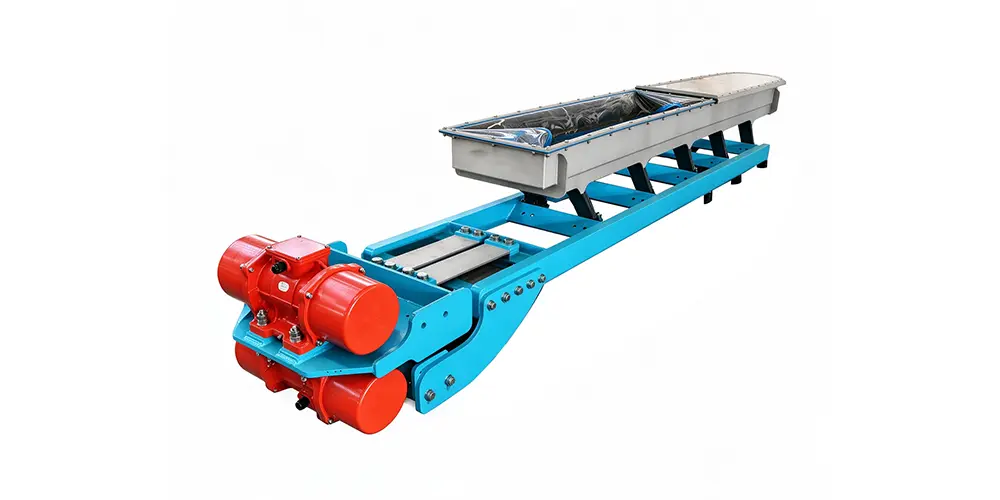

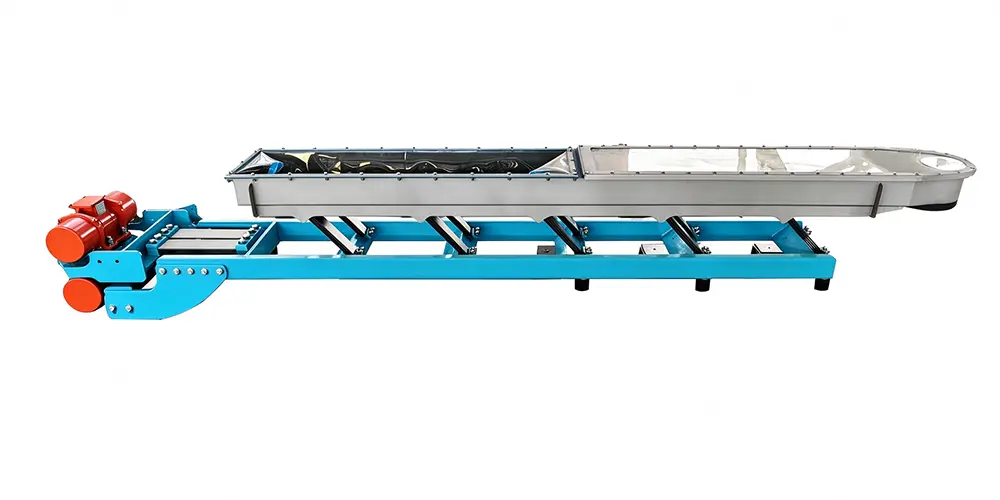

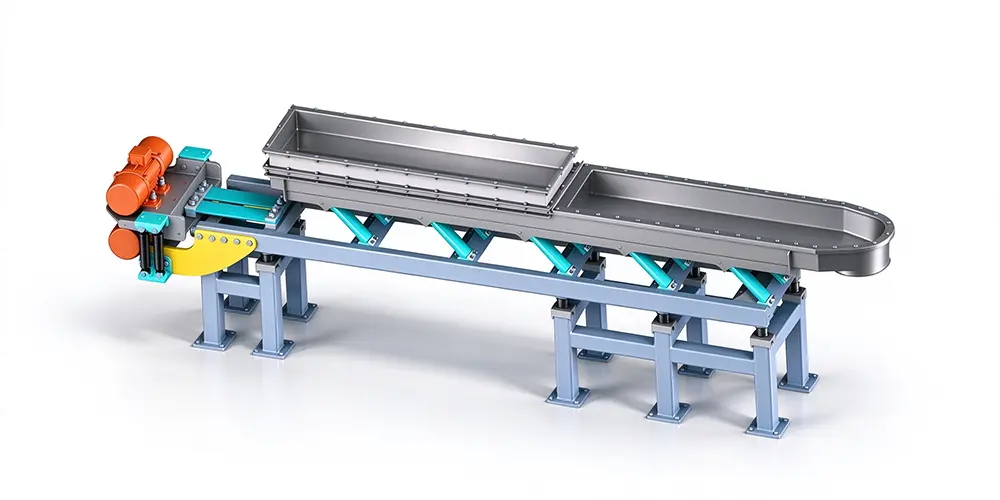

Core Structure of Our Vibratory Trough Conveyor

• Trough: Long trough body, with optional material like ss304, q235b.
• Trough cover: Transparent inspection cover available for sealed conveying versions. A reserved air extraction port can be added for vacuum / dust extraction.
• Plate spring assembly: Black plate springs connect upper and lower mass.
• Vibration monitoring & control: Matching VFD unit to adjust amplitude and conveying rate continuously.

Key Benefits

• Low foundation dynamic load: No heavy reinforced concrete base required. Easy installation on steel structures or factory floors.
• Low power consumption: Resonant amplification reduces required motor power.
• Stable and consistent amplitude for uniform material flow.
• Custom trough length and width for different conveying distances.
• Wear-resistant lining options for abrasive bulk solids.
• Optional fully sealed design to prevent dust leakage.

Typical Materials & Industry Applications

Our two-mass resonant conveyor handles many bulk solid materials:

• Mineral powder, ore grit
• Food grains, chemical powder
• Hot or cool bulk material (can be equipped with cooling jacket)

Common industries: Metallurgy, mining, chemical processing, foundry, food processing.

Two-Mass vs Single-Mass Vibratory Conveyors

Custom Options

• Sealed trough cover, inspection opening and reserved air extraction port
• Perforated trough plate for pre-sieving
• Wear-resistant lining (NM400 steel, UPE liner)
• Control unit: manual / automatic mode
• Different trough slope, discharge outlet shape

FAQ

Q1: What is a trough in vibratory conveying equipment?

A trough is a long open groove-shaped structure for carrying and guiding bulk material flow. It is the main working body of vibratory conveyors and feeders.

Q2: Can this conveyor handle abrasive materials such as FeSi75?

Yes. We install replaceable wear liners inside the trough for abrasive materials like FeSi75 ferrosilicon.

Q3: Is foundation reinforcement mandatory?

Not required in most cases, which is one big advantage of two-mass resonant structure.

Q4: Can we adjust the conveying amplitude?

Yes. The matched control unit enables continuous amplitude adjustment, and supports vibration sensor feedback for PID closed-loop control.

Get Technical Proposal

If you have a bulk material conveying project, share your material type, bulk density, required capacity and trough length. As a professional vibrating conveyor manufacturer in CHina, VRV engineering team can provide a customized technical drawing and quotation. Reach out to us for further discussion.
