A bin activator is a key piece of equipment used to promote smooth, consistent material discharge from silos, hoppers, and storage bins. It effectively eliminates common issues like bridging, rat-holing, and material segregation, ensuring stable operation for downstream processing equipment.

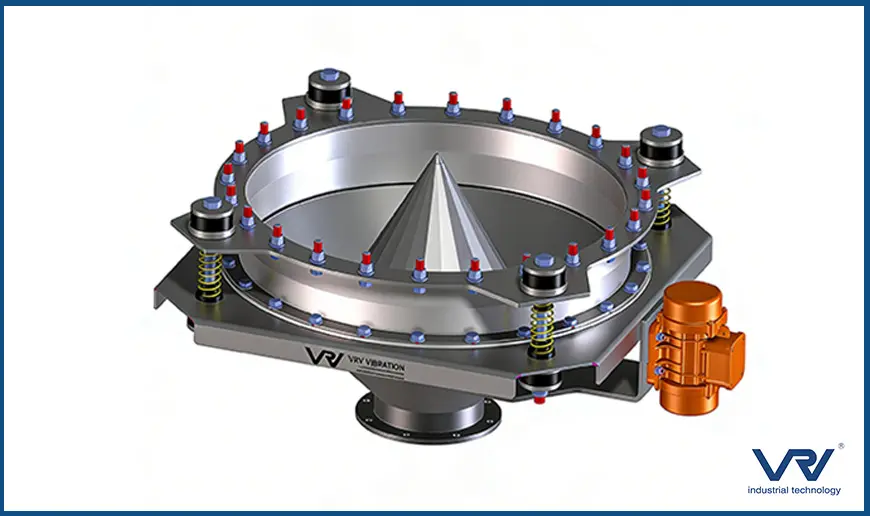

Vibratory Bin Activator for Mining & Construction Bulk Material Discharge

What Is a Bin Activator?

A vibratory bin activator uses controlled vibration to loosen and flow bulk materials. It is installed between the storage bin and the discharge outlet, creating uniform material movement without damaging particles or causing blockages.

Key Benefits of a Bin Activator

1. Eliminates bridging and rat-holing in storage bins

2. Ensures continuous and uniform material discharge

3. Protects downstream equipment from overload or interruption

4. Low power consumption and minimal maintenance

5. Suitable for powder, granular, and bulk solid materials

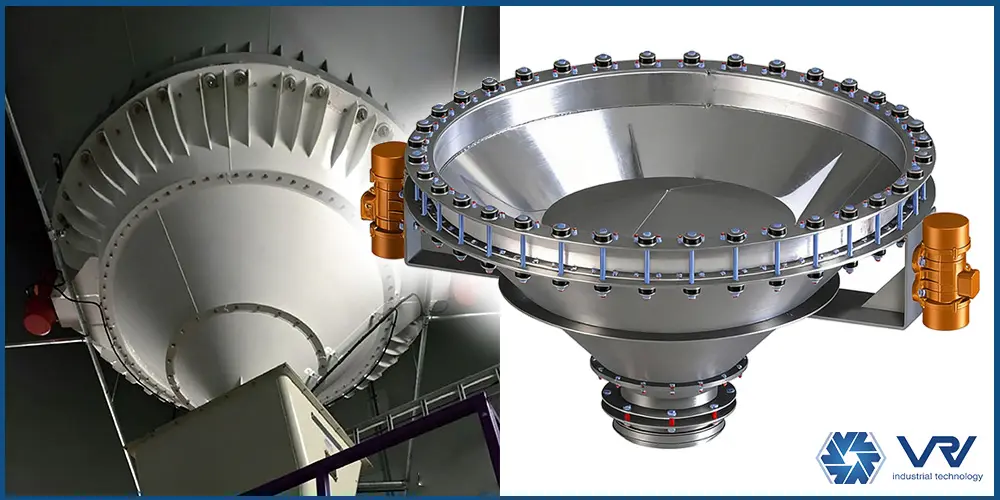

Stainless Steel Vibratory Bin Activator for Pharmaceutical & Food Industry

How to Select a Bin Activator?

1. Material Characteristics

- Choose the right model based on material properties:

- Fine powder: Select a bin activator with adjustable vibration intensity

- Abrasive material: Use wear-resistant lining and heavy-duty structure

- Food/pharma materials: Use 304/316L stainless steel for hygiene compliance

2. Bin Size & Discharge Capacity

- Match the activator diameter to your silo opening and required throughput. Standard sizes range from 300mm to 3600mm to fit most industrial bins.

3. Installation Environment

- Dry industrial sites: Carbon steel bin activator with paint coating

- Corrosive/humid sites: Stainless steel vibratory bin activator

- Dust-proof requirements: Fully sealed structure with isolation sleeves

Vibratory Bin Activator for Silo & Bulk Material Discharge

Common Applications

Mining & quarrying: ore, sand, gravel

Food industry: flour, sugar, salt, grain

Chemical industry: powder, granules, additives

Building materials: cement, lime, gypsum

A high-quality bin activator greatly improves material flow efficiency and reduces downtime. Choosing the right type depends on your material, bin size, industry standards, and working environment.

We provide customized vibratory bin activators in carbon steel, 304 stainless steel, and 316L stainless steel. Contact our engineering team for a free selection solution.

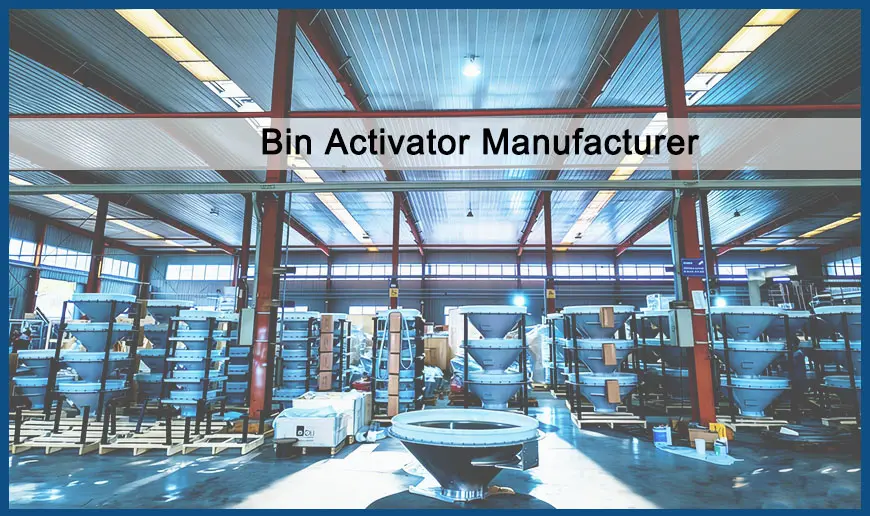

Professional Vibratory Bin Activator Manufacturer | Custom Design & Production
